OH43AB

Portable Battery-Powered High Brightness Digital Signage | 43” OH43AB

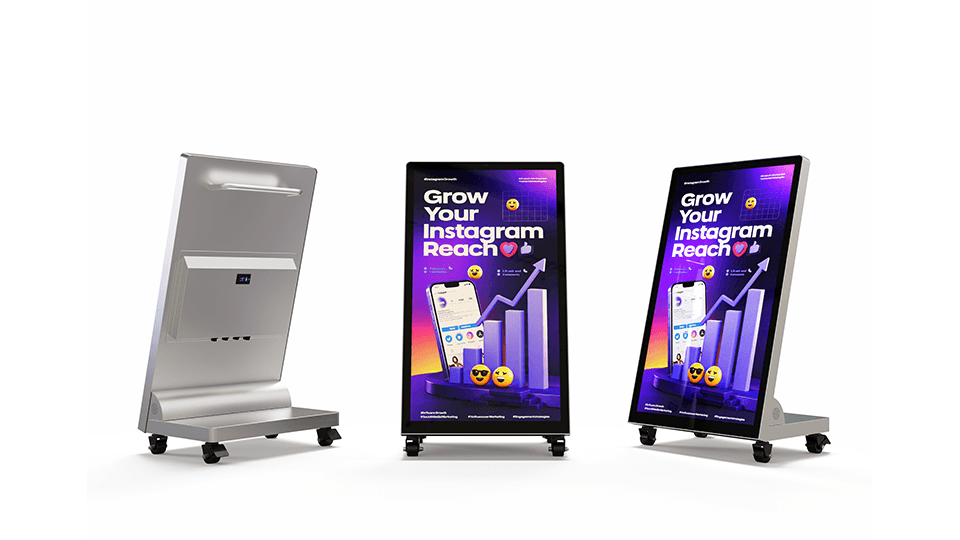

43” High Brightness Outdoor Digital Android Battery A-Boards – 1800nits, OH43AB

Sunlight readable and fully portable solution for any space; display content 14hours and night from a single charge (7Hours)

Key Features:

  • Fully Portable
  • 1,500cd/m² High Brightness
  • Battery-Powered Display
  • Fully Weatherproof
  • Robust Fixed Design
  • Integrated Android Media Player

1800nits FHD IP66 rated Outdoor Digital Android Battery A-Boards Key Features

Brightness

Ultra High Brightness

With a great brightness of 1800 nits, ViviSign ultra high brightness series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

IP66

IP66 Rated Dust / Water Proof

The display is sealed with IP66 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

Fan-less Design

Fan-less Design

Fan-less design and Super advanced thermal managment technology extracts and expels heat from inside the displays, without exposing display electronics to ambient air or environmental contaminants, like dust, dirt and moisture and without the use of air filters – which means typically no periodic maintenance required.

True Color Calibration

True Color Calibration

Every screen is factory calibrated to D65 (6500K) CIE color standard. This color setting produces a natural looking image which has a correlated color temperature to that of daylight.

Android Player

Integrated Android Media Player

The integrated Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware. Third-party software can be installed instead if required.

Local Dimming Backlight

Ambient Light Sensor

These displays include an internal ambient light sensor for use when required. This ensures the screen is always operating at the most suitable brightness for its environment.

Specifications

Display

Diagonal Size

43″

Resolution

1,920 x 1080

Brightness (Typ)

1800 nit

Viewing Angle (H/V)

178/178

Colour Gamut

72% (NTSC)

Pixel Pitch (HxV)

0.47(H) x 0.47(V)

Response Time

8ms

Operation Time Support

24/7

Battery

Battery Tech.

Blade battery, long service time, stable performance

Battery Capacity

50000 mAh

Charging Time

Charge for 7 hours

Working Hours

14 hours

AIO Android Screen

CPU

Quad-core Cortex-A55 up to 2.0GHz

Memory/Internal Storage/OS

2GB/16GB/Android OS 7.1.1

Network

WiFi 2.4G/5G 802.11 a/b/g/n/ac/ax

Connectivity

RJ45 x1, TF Slot, USB x2, USB OTG x1, Audio Out x1

Power

Power Supply

AC100-240V 50/60Hz – DC 24V

Power Consumption (On Mode)

100 W (Max.)

Dimension & Weight

Set Dimension (WxHxD)

Refer to Drawing

Set Weight

48 kg

Operation Conditions

Working Temperature

-20℃~ 60℃

Humidity

10 ~ 90%, non-condensing

Mechanical

VESA Mount

N/A

Colour

Black
