Shelf Edge Signage Solution – At a Glance

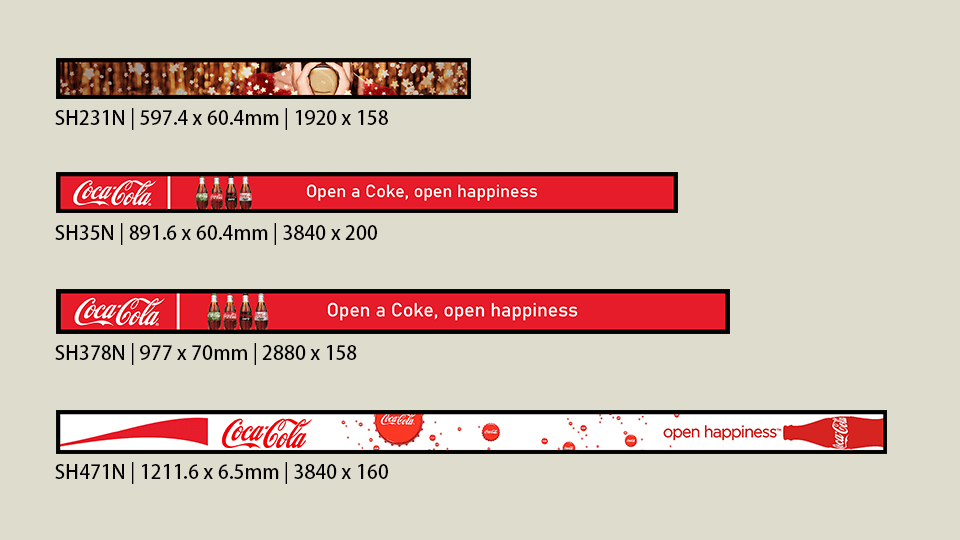

Digital Shelf Edge Displays

Vivisign Shelf Edge Digital Displays deliver powerful, in-aisle shopping experiences can brand messaging with eye-catching clarity using Vivisign all-in-one shelf edge displays. Featuring Full HD and Ultra HD resolution and 400nits – 500nits brightness, the displays attract attention from practically every viewing position.

Grab shoppers’ attention on retail shelfving units with eye-catching dynamic digital endcap displays and shelf screens. Vivisign LCD shelf edge displays allows shoppers to upgrade from a traditional static shelf labels opens up a whole new world of possibilities.

ViviSign shelf-edge LCD Display is about the special application on shelf edge for smart retail solution. Considering the retail shelf environment, we can provide both shelf header LCD Displays and shelf-edge LCD Displays, which are specially designed for the shelf restricted space digital signage applications. Digital shelf edge displays are using native stretched lcd panels, which are custom built with ultra-wide aspect ratio of 20:1 or >3:1. Native stretched LCD Panels, also known as bar displays, are made from BOE, Innolux and AUO in a variety of sizes, configurations, and brightness options. Native Stretched LCD Panels have no problems like broken glass, fragile sealing, micro-cracks, light leakage that cut bar displays encountered.

The retail digital shelf display is an attractive Shelf Edge LCD Display well suited for a variety of in store, on shelf digital signage applications such as retail shelf edge pricing, retail shelf edge advertising and multi-shelf digital signage in supermarkets, grocery stores, liquor stores, clothing stores and other retail applications. Such smart shelf system is end to end digital retail TFT shelf edge display solution perfect for retail POS applications, and it can turn your shop into a modern retail business to enhance customers’ shopping experience.

OPT.1: All-in-one Android Screens

This shelf edge stretched monitor screen with Android player allows content to be updated from server remotely by utilizing WIFI. Content can be stored locally on the device, cutting out the need for external media player. The shelf edge digital signage display is compatible with any 3rd party Android-based CMS solution for flexibility and eas-of-use. Wi-Fi/Bluetooth enables you to network using Wi-Fi. This feature is installed inside the display for embedded wireless Bluetooth functionality. It supports 802-11 b/g/n protocols.

OPT.2: Shelf Edge Display with HDMI Daisy Chain

If you use multi shelf displays on one shelf and you want them to display content as a video wall, you can connect them together with HDMI cable and play your content as a video wall (Daisy Chain by HDMI Cables). Each screen can be setup as videowall position with the remote controller or OSD board equipped, easy setup. Connect an external player by HDMI and play it as video wall. Daisy Chain allows for up to 13 shelf displays to connect one HDMI output.

AIO Android LCD Digital Shelf Displays

Each shelf edge screen can be used seperately, Screens have built-in Android player, which can support any 3rd party digital signage software APK running for single usage. Main Purpose: Shelf-wall display | Digital signage display | Advertisement display | Built-in ShopDisplays

21‘’ Digital Shelf Edge Display

20.9” Digital Shelf Edge Displays | SH21N

  • Full HD Resolution (1920 x 132)
  • Outline Size: 544.5*56.7*24mm
  • Display Area: 529.42*36.4mm
  • Brightness: 1000 nits
  • OPT.1: Android OS 11
23.1‘’ Digital Shelf Edge Display

23.1” Digital Shelf Edge Displays | SH231N

  • Full HD Resolution (1920 x 158)
  • Outline Size: 597.2*61.8*15mm
  • Display Area: 585.2*48.16mm
  • Brightness: 700 nits
  • OPT.1: Android OS 11
35‘’ Digital Shelf Edge Display

35” Digital Shelf Edge Displays | SH35N(U)

  • Ultra HD Resolution (3840*200)
  • Outline Size: 891.6*60.4*27mm
  • Display Area: 877.8*45.72mm
  • Depth: 27mm
  • OPT.1: Android OS 9.0 or 11
35‘’ Digital Shelf Edge Display

37.8” Digital Shelf Edge Displays | SH378N

  • Full HD Resolution (2880*158)
  • Outline Size: 977*70*19mm
  • Display Area: 959.04*52.614mm
  • Depth: 19mm
  • OPT.1: Android OS 9.0 or 11
47.1‘’ Digital Shelf Edge Display

47.1” Digital Shelf Edge Displays | SH471N

  • Ultra HD Resolution (3840*160)
  • Outline Size: 1211.6*67.5*24.3mm
  • Display Area: 1196*49.84mm
  • Depth: 24.3mm
  • OPT.1: Android OS 9.0 or 11

Digital Shelf Header LCD Displays

28'' Stretched Display

24” Native Stretched Display | SH24N

  • Aspect Ratio: 16:3
  • 24” Stretch LCD panel, 1920*360 Resolution, 300 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 615.9*135.4*40mm
  • Display Area: 597.9*112.1mm

37” Native Stretched Display | SH37N

  • Aspect Ratio: 16:4.5
  • 37” Stretch LCD panel, 1920*540 Resolution, 700 nits brightness, 178/178 Viewing Angle, Non-glare
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 25%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 914.9*280.3*50.5mm
  • Display Area: 899.71*253mm
28'' Stretched Display

47.6” Native Stretched Display | SH476W

  • Aspect Ratio: 16:3
  • 47.6” Stretch LCD panel, 1920*360 Resolution, 700 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1212*250*50mm
  • Display Area: 1189.44*223.02mm
28'' Stretched Display

48.5” Native Stretched Display | SH485W

  • Aspect Ratio: 16:3
  • 48.5” Stretch LCD panel, 3840*720 Resolution, 700 nits brightness, 178/178 Viewing Angle.
  • Super MVA Technology LCD Panel, 5000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 1%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: TBD
  • Display Area: 1209.6*226.8mm

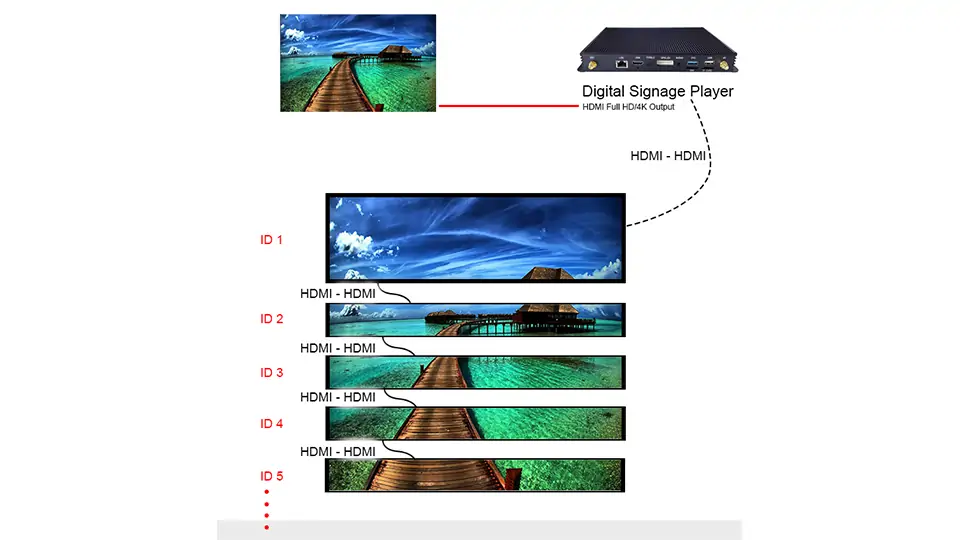

LCD Digital Shelf Edge Display with HDMI Daisy Chain

VideoWall Usage (HDMI Daisy Chain)

If you use multi shelf displays on one shelf and you want them to display content as a video wall, you can connect them together with HDMI cable and play your content as a video wall (Daisy Chain by HDMI Cables). Each screen can be setup as videowall position with the remote controller or OSD board equipped, easy setup. Connect an external player by HDMI and play it as video wall. Daisy Chain allows for up to 13 shelf displays to connect one HDMI output.

VideoWall controller board and Android mainboard cannot exist in one shelf display at the same time, so customer has to determine which format he needs before purchase.

The shelf edge LCD Display matches our different sizes of Shelf Header Stretched Displays perfectly, creating an amazing experience. Additionally the shelf edge LCD Displays and other smart retail products support daisy chain functionality, saving your money, licenses and complexity by driving up to 13 monitors from one HDMI output.

Vivisign_LCD Shelf Displays with HDMI Daisy Chain
23.1‘’ Digital Shelf Edge Display

23.1” Digital Shelf Edge LCD Monitor | SH231N

  • Full HD Resolution (1920 x 158)
  • Outline Size: 598.8*60.4*18.91mm
  • Display Area: 585.6*48.19mm
  • Brightness: 400 nits
  • LCD monitor with HDMI Daisy Chain
35‘’ Digital Shelf Edge Display

35” Digital Shelf Edge LCD Monitor | SH35N(U)

  • Ultra HD Resolution (3840*200)
  • Outline Size: 891.6*60.4*27mm
  • Display Area: 877.8*45.72mm
  • Depth: 27mm
  • LCD monitor with HDMI Daisy Chain
35‘’ Digital Shelf Edge Display

37.8” Digital Shelf Edge LCD Monitor | SH378N

  • Full HD Resolution (2880*158)
  • Outline Size: 979*72.61*21mm
  • Display Area: 959.04*52.614mm
  • Depth: 21mm
  • LCD monitor with HDMI Daisy Chain
47.1‘’ Digital Shelf Edge Display

47.1” Digital Shelf Edge LCD Monitor | SH471N

  • Ultra HD Resolution (3840*160)
  • Outline Size: 1209*62.9*22.2mm
  • Display Area: 1196*49.84mm
  • Depth: 22.2mm
  • LCD monitor with HDMI Daisy Chain

Smart Shelf Edge Digital Signage Solution Recommendation

Shelf Edge LCD Displays & Endcap/Header LCD Displays

600mm Wide Shelf

Shelf Edge Display
Header Display

900mm Wide Shelf

Shelf Edge Display
Header Display

1200mm Wide Shelf

Shelf Edge Display
Header Display

Features

Flexible Configuration

Flexible Configuration

ViviSign can provide both Digital Shelf Edge Displays (Shelf LCD Display with HDMI IN Connectivity) and All-in-one Digital Signage Shelf Display (built-in Android OS) as the customer’s requirement. Our digital signage software is ready-to-use, no need users to install again. Users also can use the 3rd party digital signage software ro run on the display Android OS platform.

Digital Shelf Edge

Cloud-based CMS

Cloud-based CMS allows to manage remotely Digital Shelf Edge Displays content easily. With a rich user interface, the CMS lets you manage display pricing, ads, messages & product information displayed on “EDGE” shelves accross all your locations from your head office.

24×7 Continuous Operation

24×7 Continuous Operation

Commercial grade LCD Panel with LED Backlight offers at least 50,000 hours life span, which allows the shelf edge bar type display for 24×7 Continuous Operation.

Shelf Edge Digital Displays

Easy Installation

  • Slim design – Digital Edge Displays Slim design can complement any interior as it is light and visually appealing
  • Customized bracket designed for shelf environment makes it fit neatly onto the front of a shelf
  • Landscape and portrait orientation compatible
