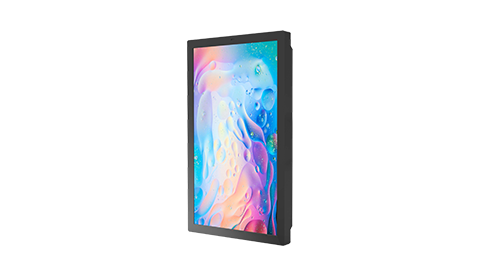

WF-SET Series Outdoor Displays
High Brightness Open Frame Touch LCD Displays, HMI/Signage for EV Charging Station
Creating display interfaces ideal for semi-outdoor or outdoor high bright environments
Features:
- IP65 Rating on the front of the display
- 1000-2500 nit high brightness (LCD panel), enhanced visibility in direct sunlight
- Wide operating temperatures from -10°C to 60°C
- Optically bonded to reduce glare
- The AR coating technology can reduce reflection by 3%, delivering improved clarity in bright outdoor environments.
- 10 point multi-touch capacitive touch panel
- Superior Display Protection with Anti-UV Lamination
- OPT.1: LCD Monitor with HDMI input (USB for touch If need touch screens)
- OPT.2: Built-in Android player (Android OS 11 or higher)

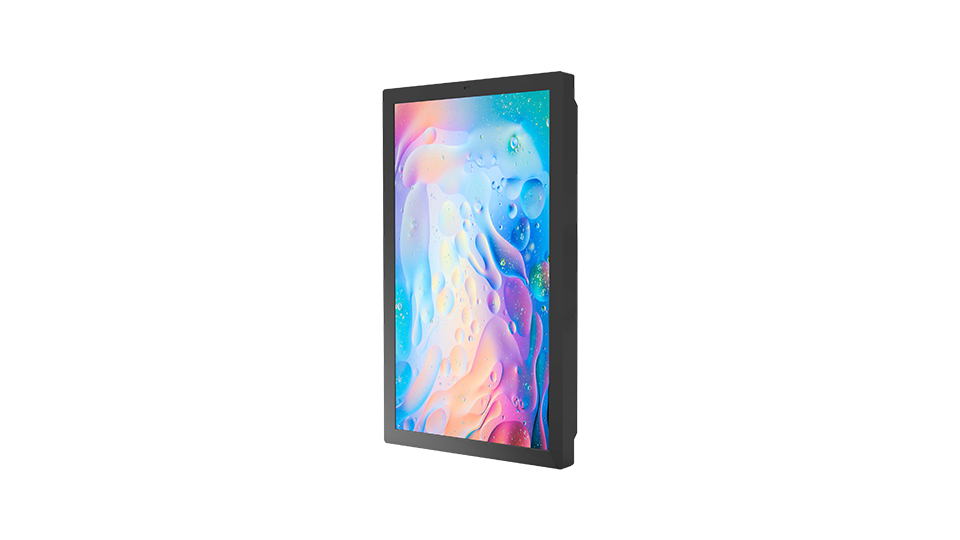

High Brightness Open Frame Touch LCD Display
Flexible, Vibrant Displays Anywhere
15.6” High Brightness Open Frame Touch Display | WF156SET
Display Resolution: 1920 x 1080
19” High Brightness Open Frame Touch Display | WF19SET
Display Resolution: 1280 x 1024
21.5” High Brightness Open Frame Touch Display | WF22SET
Display Resolution: 1920 x 1080
23.8” High Brightness Open Frame Touch Display | WF24SET
Display Resolution: 1920 x 1080
Creating display interfaces ideal for bright environments
Vivisign High Brightness Open Frame products are available in a variety of sizes and can handle up to 2500 nits brightness, making them ideal for use in bright conditions. These High Brightness Open Frame products are excellent for indoor and outdoor applications such as self-service kiosks, charging stations, smart poles, displays for industrial automation, and more, thanks to their adjustable mounting, orientation, and diverse connectivity features.
Ultra High Brightness
With a great brightness of 1500 nits, ViviSign ultra high brightness series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.
IP65 Rated Dust / Water Proof
The front of display is sealed with IP65 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.
Anti-UV Lamination
Direct bonding lamination and anti-UV treatment are applied to protect displays from yellowing and fading caused by sunlight exposure. Benefit from a prolonged product lifespan, superior visibility, and improved clarity with our specialized design for outdoor environments.
Optical Bonding Technology
Fully laminated (Optical Bonding) for better optical performance, Traditional touch screen air gaps cause internal reflections between the display and touch panel. Optical bonding fills the gap and eliminates the inner light reflection.
OPT.: PCAP Touch Screen
State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.
Ambient Light Sensor
These displays include an internal ambient light sensor for use when required. This ensures the screen is always operating at the most suitable brightness for its environment.
Fan-less Design
Fan-less design and Super advanced thermal managment technology extracts and expels heat from inside the displays, without exposing display electronics to ambient air or environmental contaminants, like dust, dirt and moisture and without the use of air filters – which means typically no periodic maintenance required.
24/7 Continuous Use
These displays are able to be in constant use 24/7 for over 50,000 hours thanks to their commercial grade LCD panel, media player and other components.
