Resizing LCDs, Cutting LCDs

SH-RC Series Resizing Stretched LCDs

Resizing LCDs | Resizing (Cutting) Stretched LCD Displays |Resizing Stretch Digital Display

Resizing a LCD is literally to cut the glass, polarizers, circuits and circuit boards to a new size.

Key Features

  • Resizing LCDs (Various aspect ratio of 16:X) as requested
  • HD, Full HD & Ultra HD LCD Panel Resolution
  • High Brightness(Typ.): 500 cd/m² | Max. 1000 cd/m² can be Optional
  • Wide Viewing Angle
  • LCD Module with LVDS interface or Finished Close type Optional
  • Robust signage durability during continuous 24/7 operation
  • Low Power Consumption

Resizing/Cutting Stretched LCD Displays (Finished Displays)

13.5” Resizing Stretched Display - SH135RC

13.5” Resizing Stretched Display | SH135RC

  • 13.5” Stretch LCD panel, 1280*228 Resolution, 500 nits brightness, 170/170 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 357.92*80*35mm
  • Display Area: 337.92*60mm
16.3” Resizing Stretched Display

15” Resizing Stretched Display | SH15RC

  • Aspect Ratio: 16:3 LCD Module
  • 15” Stretch LCD panel, 1280*242 Resolution, 600 nits brightness, 170/160 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 396 x 94.2 x 12.2
  • Display Area (mm): 374.78*72.61
15.3” Resizing Stretched Display

15.3” Resizing Stretched Display | SH153RC

  • Aspect Ratio: 5:1.33 LCD Module
  • 15.3” Stretch LCD panel, 1280*342 Resolution, 600 nits brightness, 170/160 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 396*124*13
  • Display Area (mm): 374.78*100.14
SH195RC 19.5'' Resizing Stretched LCD Display

15.9” Resizing Stretched Display | SH159RC

  • 15.9” Stretch LCD panel, 1280*512 Resolution, 500 nits brightness, 170/160 Viewing Angle.
  • ADS Technology LCD Panel, 1000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 398.4*176.2*46mm
  • Display Area: 376.3*150.5mm
16.3” Resizing Stretched Display

16.3” Resizing Stretched Display | SH163RC

  • Aspect Ratio: 16:2.8 LCD Module
  • 16.3” Stretch LCD panel, 1280*238 Resolution, 600 nits brightness, 178/178 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 431.8(H) x 95.8(V) x 15.1(T)
  • Display Area (mm): 409.8(H) x 71.4(V)
16.7” Resizing Stretched Display

16.7” Resizing Stretched Display | SH167RC

  • Aspect Ratio: 16:4.5 LCD Module
  • 16.3” Stretch LCD panel, 1920*540 Resolution, 400 nits brightness, 178/178 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 425.8(H) x 131(V) x 8(T)
  • Display Area (mm): 409.8(H) x 115(V)
17.1” Resizing Stretched Display - SH171RC

17.1” Resizing Stretched Display | SH171RC

  • 17.1” Stretch LCD panel, 1600*172 Resolution, 500 nits brightness, 170/170 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 446*60*35mm
  • Display Area: 432*46mm

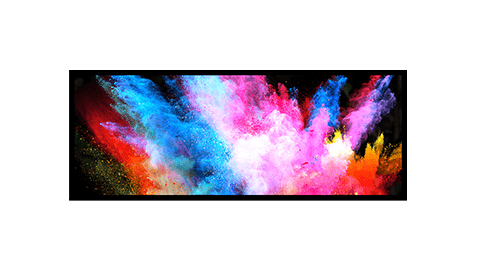

17.2” Resizing Stretched Display

17.2” Resizing Stretched Display | SH172RC

  • Aspect Ratio: 16:6 LCD Module
  • 17.2” Stretch LCD panel, 1366*510 Resolution, 600 nits brightness, 178/178 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 430.3 x 178.4 x 14
  • Display Area (mm): 409.8(H) x 153(V)
19” Resizing Stretched Display

19” Resizing Stretched Display | SH19RC

  • Aspect Ratio: 16:3 LCD Module
  • 19” Stretch LCD panel, 1920*360 Resolution, 600 nits brightness, 178/178 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 491.5 x 109.4 x 12.8
  • Display Area (mm): 476.64(H) x 89.37(V)
24.4” Resizing Stretched Display - SH244RC

19.4” Resizing Stretched Display | SH194RC

  • 19.4” Stretch LCD panel, 1920*536 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 25%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 502*158.9*38mm
  • Display Area: 476.064*132.9mm
19.4” Resizing Stretched Display

19.4” Resizing Stretched Display | SH194RC

  • Aspect Ratio: 16:4.24 LCD Module
  • 19.4” Stretch LCD panel, 1920*510 Resolution, 600 nits brightness, 178/178 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 495.6 x 150.7 x 12
  • Display Area (mm): 476.6(H) x 126.6(V)
21.9'' Resizing Stretched Display

21.9” Resizing Stretched Display | SH219RC

  • Aspect Ratio: 16:5.93 LCD Module
  • 21.9” Stretch LCD panel, 9120*712 Resolution, 600 nits brightness, 178/168 Viewing Angle
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • Outline Size (mm): 548.4 x 222.2 x 14.5
  • Display Area (mm): 527.04(H) x 195.5(V)
24.4” Resizing Stretched Display - SH244RC

24.4” Resizing Stretched Display | SH244RC

  • 24.4” Stretch LCD panel, 1920*540 Resolution, 450 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 622*192.16*39.5mm
  • Display Area: 597.88*168.16mm
24.8” Resizing Stretched Display - SH248RC

24.8” Resizing Stretched Display | SH248RC

  • 24.8” Stretch LCD panel, 1920*643 Resolution, 400 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 622*224*39.5mm
  • Display Area: 597.6*200mm
32.5” Resizing Stretched Display - SH325RC

32.5” Resizing Stretched Display | SH325RC

  • 32.5” Stretch LCD panel, 1920*210 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 859.4*130*50mm
  • Display Area: 819.4*130mm
32.6” Resizing Stretched Display - SH326RC

32.6” Resizing Stretched Display | SH326RC

  • 32.6” Stretch LCD panel, 1920*270 Resolution, 500 nits brightness, 176/176 Viewing Angle.
  • ASV Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 863*150*40mm
  • Display Area: 819.4*115mm
32.6” Resizing Stretched Display - SH326RC

34.8” Resizing Stretched Display | SH348RC

  • 34.8” Stretch LCD panel, 1920*264 Resolution, 500 nits brightness, 176/176 Viewing Angle.
  • MVA Technology LCD Panel, 5000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 1%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 902*151.9*50mm
  • Display Area: 878.112*118.6mm
SH354RC - 35.4'' Resizing Stretched LCD Display

35.4” Resizing Stretched Display | SH354RC

  • 35.4” Stretch LCD panel, 1920*438 Resolution, 500 nits brightness, 176/176 Viewing Angle.
  • MVA Technology LCD Panel, 5000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 1%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 902*220.8*50mm
  • Display Area: 878.112*196.8mm
35.6'' Resizing Stretched Displays

35.6” Resizing Stretched Display | SH356RC

  • 35.6” Stretch LCD panel, 1920*486 Resolution, 700 nits brightness, 176/176 Viewing Angle.
  • MVA Technology LCD Panel, 5000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 1%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 908.6*250*48mm
  • Display Area: 878.112*219mm

35.8” Resizing Stretched Display | SH358RC

  • 35.8” Stretch LCD panel, 1920*534 Resolution, 500 nits brightness, 176/176 Viewing Angle.
  • MVA Technology LCD Panel, 5000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 1%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 902*273.3*50mm
  • Display Area: 878.112*240mm
36.6'' Resizing Stretched LCD Displays

36.6” Resizing Stretched Display | SH366RC

  • 36.6” Stretch LCD panel, 1920*466 Resolution, 700 nits brightness, 178/178 Viewing Angle.
  • AMVA3 Technology LCD Panel, 4000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 28%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 935*250*48mm
  • Display Area: 904.32*219mm
36.8” Resizing Stretched Display - SH368RC

36.8” Resizing Stretched Display | SH368RC

  • 36.8” Stretch LCD panel, 1920*358 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 962.8*210.1*50mm
  • Display Area: 919.3*171.4mm
32.5” Resizing Stretched Display - SH325RC

37.3” Resizing Stretched Display | SH373RC

  • 37.3” Stretch LCD panel, 1920*202 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 971.7*130*50mm
  • Display Area: 941.1*99.4mm
39.6” Resizing Stretched Display - SH396RC

39.6” Resizing Stretched Display | SH396RC

  • 39.6” Stretch LCD panel, 1920*720 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 972*384*49.2mm
  • Display Area: 941.18*352.94mm
42.9” Resizing Stretched Display - SH429RC

42.9” Resizing Stretched Display | SH429RC

  • 42.9” Stretch LCD panel, 1920*330 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1104.78*215*48mm
  • Display Area: 1073.78*184mm
49.1'' Resizing Stretched LCD Display

49.1” Resizing Stretched Display | SH491RC

  • 49.1” Stretch LCD panel, 3840*960 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1232*333*54mm
  • Display Area: 1209.6*302.4mm
36.8” Resizing Stretched Display - SH368RC

57.2” Resizing Stretched Display | SH572RC

  • 57.2” Stretch LCD panel, 3840*720 Resolution, 700 nits brightness, 178/178 Viewing Angle, Non-glare.
  • AMVA3 Technology LCD Panel, 4000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 28%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1462.48*301.84*52.5mm
  • Display Area: 1428.48*267.84mm
36.8” Resizing Stretched Display - SH368RC

57.4” Resizing Stretched Display | SH574RC

  • 57.4” Stretch LCD panel, 3840*806 Resolution, 700 nits brightness, 178/178 Viewing Angle, Non-glare.
  • AMVA3 Technology LCD Panel, 4000:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 28%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1462.48*334.00*52.5mm
  • Display Area: 1428.48*300.00mm
SH603RC - 60.3'' Resizing Stretched LCD Display

60.3” Resizing Stretched Display | SH603RC

  • 60.3” Stretch LCD panel, 3840*652 Resolution, 700 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1543*290*51.5mm
  • Display Area: 1509.12*256.50mm

67.4” Resizing Stretched Display | SH674RC

  • 67.4” Stretch LCD panel, 3840*1076 Resolution, 500 nits brightness, 178/178 Viewing Angle.
  • ADS Technology LCD Panel, 1200:1 Contrast Ratio
  • LCD Surface Treatment: AG, Haze 2%
  • OPT.1: LCD Monitor with HDMI IN
  • OPT.2: All-in-one Android stretched displays
  • Outline Size: 1688.98*502.68*51mm
  • Display Area: 1649.74*462.68mm
