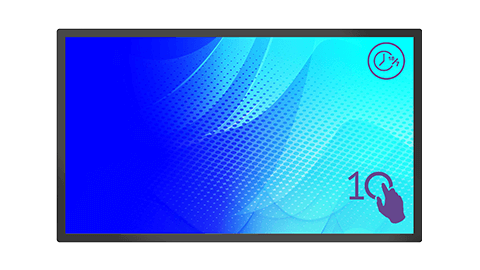

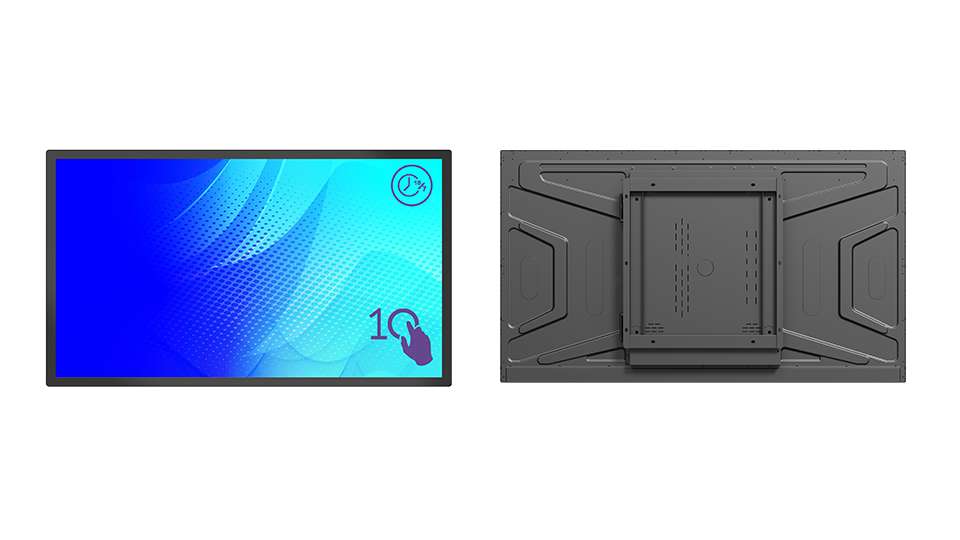

PCAP Touch Panel

3.5” to 55” PCAP Touch Panel

Capacitive Touch Screen

  • Regular Size: 3.5 -55 Inches
  • Touch Type: PCAP,10 Points Touch
  • Material: Glass+Glass
  • Resolution: 4096 X 4096
  • Surface Hardness: 7H
  • Interface: USB,RS232
  • Certificates: CE,FCC,RoHS
  • Warranty: 1 Year
Customize TP

TP Product Customizable

① Touch screen size

② FPC outlet location

③ ITO glass thickness

④ Customer Logo

⑤ Glass of surface treatment AG, AF, AR.

PCAP Touch Screen/Panel

(Customize Service including: Touch Screen Size, FPC Outlet Location, ITO Glass Thickness, Logo & Glass of surface treatment AG, AR, AF)

TP

3.5” Capacitive Touch Screen | TP035G

  • Size: 3.5” (4:3)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 86.0*77.1mm
  • Display Area: 217.9*70.0*52.5mm
TP

4.3” Capacitive Touch Screen | TP043G

  • Size: 4.3” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 104.4*66.2mm
  • Display Area: 96.3*55.7mm
TP

5.0” Capacitive Touch Screen | TP050G

  • Size: 5.0” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 120.7*75.8mm
  • Display Area: 109.9*66.5mm
TP

7.0” Capacitive Touch Screen | TP070G

  • Size: 7.0” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 164.0*99.4mm
  • Display Area: 154.6*86.7mm
TP

10.1” Capacitive Touch Screen | TP101G

  • Size: 10.1” (16:10)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 248.8*174.5mm
  • Display Area: 217.9*136.3mm
TP

10.4” Capacitive Touch Screen | TP104G

  • Size: 10.4” (4:3)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 236.2*178.4mm
  • Display Area: 213.2*160.4mm
TP

12.1” Capacitive Touch Screen | TP121G

  • Size: 12.1” (4:3)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 290.0*220.5mm
  • Display Area: 246*184.5mm
TP

13.3” Capacitive Touch Screen | TP133G

  • Size: 13.3” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 323.4*195.0mm
  • Display Area: 293.4*165.0mm
TP

15.6” Capacitive Touch Screen | TP156G

  • Size: 15.6” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 387.0*231.0mm
  • Display Area: 344.0*194.0mm
TP

17” Capacitive Touch Screen | TP17G

  • Size: 17” (4:3)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 377.0*309.0mm
  • Display Area: 338.9*271.4mm
TP

18.5” Capacitive Touch Screen | TP185G

  • Size: 18.5” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 456.7*277.2mm
  • Display Area: 408.7*229.0mm
TP

19” Capacitive Touch Screen | TP19G

  • Size: 19” (4:3)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: I²C
  • Outline Size: 421.0*346.0mm
  • Display Area: 379.3*304.0mm
TP

21.5” Capacitive Touch Screen | TP215G

  • Size: 21.5” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 532.5*325.6mm
  • Display Area: 475.5*266.6mm
TP

23.6” Capacitive Touch Screen | TP236G

  • Size: 23.6” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 572.6*341.6mm
  • Display Area: 522.1*294.4mm
TP

23.8” Capacitive Touch Screen | TP238G

  • Size: 23.8” (16:10)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 577.8*347.8mm
  • Display Area: 528*298mm
TP

27” Capacitive Touch Screen | TP27G

  • Size: 27” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 646.5*386.8mm
  • Display Area: 597.6*336.15mm
TP

32” Capacitive Touch Screen | TP32G

  • Size: 32” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 757.12*450.6mm
  • Display Area: 699.4*393.8mm
TP

43” Capacitive Touch Screen | TP43G

  • Size: 43” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 998.18*586.42mm
  • Display Area: 941.1*529.4mm
TP

49” Capacitive Touch Screen | TP49G

  • Size: 49” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 1132.7*663.00mm
  • Display Area: 1075.7*606mm
TP

55” Capacitive Touch Screen | TP55G

  • Size: 55” (16:9)
  • Touch Type: PCAP, 10 Points Touch
  • Material: Glass+Glass
  • Surface Hardness: 7H
  • Resolution: 4096 x 4096
  • Interface: USB,RS232
  • Outline Size: 1268.6*739.4mm
  • Display Area: 1211.6*682.4mm
