Desktop Type Digital Signage

HS-N Series | 13.3”, 15.6”, 22” & 24” Countertop Screens

Countertop Android Digital Signage LCD Display, Tabletop Digital Signage, Countertop Screens

Digital Signage for Reception Desks, Retail Counters, and Other Tabletops

Vivisign Countertop Android Built-In screens combine a robust interactive media player with a fully enclosed industrial touch screen in a sleek, modern tablet housing. Provide powerful digital signage applications without the need for dedicated space, or make the most of unused countertops by replacing static plackards with engaging interactive presentations.

Countertop Screens with Integrated Android PC

(P-CAP Touch Screen Available)

Desktop Type Digital Signage

13.3” Countertop Screen | HS133N

  • 13.3” LCD panel, 1920*1080 Resolution, 170/170 Viewing Angle.
  • Elevated Brightness: 400cd/m²
  • Outline Size (mm): Refer to Technical Drawing
  • Display Area (mm): 293.76*165.24
  • Android Player (OPT.A): Amlogic T960X, 1GB+8GB, Android OS 7.1, with HDMI IN
  • Android Player (OPT.B): RK3568, 2GB+32GB, Android OS 11
  • OPT.: 10-Point PCAP Touch
Desktop Type Digital Signage

15.6” Countertop Screen | HS156N

  • 15.6” LCD panel, 1920*1080 Resolution, 178/178 Viewing Angle
  • Elevated Brightness: 500cd/m²

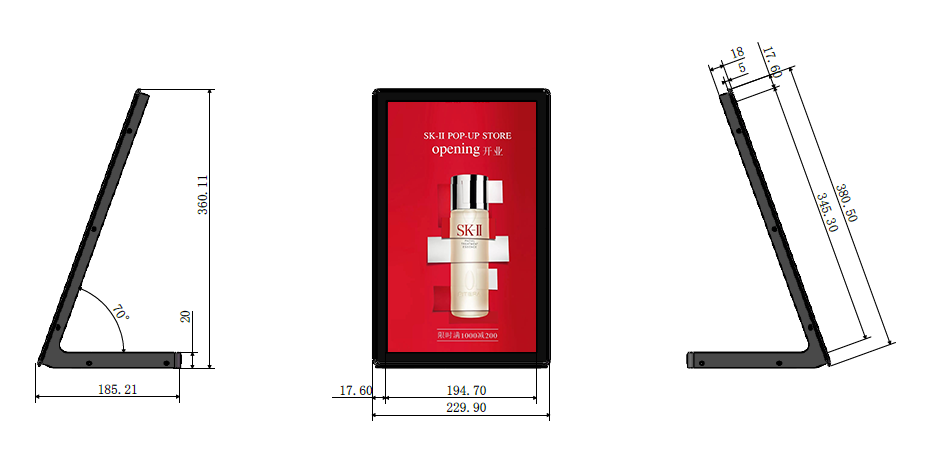

  • Outline Size (mm): Refer to Technical Drawing
  • Display Area (mm): 344.2 x 193.6
  • Android Player (OPT.A): Amlogic T960X, 1GB+8GB, Android OS 7.1, with HDMI IN
  • Android Player (OPT.B): RK3568, 2GB+32GB, Android OS 11
  • OPT.: 10-Point PCAP Touch
Desktop Type Digital Signage

22” Countertop Screen | HS22N

  • 21.5” LCD panel, 1920*1080 Resolution, 178/178 Viewing Angle
  • Elevated Brightness: 500cd/m²
  • Outline Size (mm): Refer to Technical Drawing
  • Display Area (mm): 476.6 x 268.1
  • Android Player (OPT.A): Amlogic T960X, 1GB+8GB, Android OS 7.1, with HDMI IN
  • Android Player (OPT.B): RK3568, 2GB+32GB, Android OS 11
  • OPT.: 10-Point PCAP Touch
Desktop Type Digital Signage

24” Countertop Screen | HS24N

  • 24” LCD panel, 1920*1080 Resolution, 178/178 Viewing Angle
  • Elevated Brightness: 500cd/m²
  • Outline Size (mm): Refer to Technical Drawing
  • Display Area (mm): 527 x 296.5
  • Android Player (OPT.A): Amlogic T960X, 1GB+8GB, Android OS 7.1, with HDMI IN
  • Android Player (OPT.B): RK3568, 2GB+32GB, Android OS 11
  • OPT.: 10-Point PCAP Touch

Tabletop Digital Signage

IPS-Panel

IPS Panel

Commercial grade IPS technology ensures incredible image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour from an ultra-wide viewing angle in landscape or portrait orientation.

7x24hours

24/7 Continuous Use

Designed for continuous use in public spaces, these displays utilise commercial grade LCD panels, LED backlights and internal components. This means they can run 24/7 for over 50,000 hours. To avoid tampering, they also have no external buttons or controls.

High Brightness

500cd/m² Brightness

Designed for brightly lit spaces such as retail stores and shopping centres. Almost three times the brightness level of a standard domestic screen or monitor, making your content really stand out from the crowd.

Warranty

Protective Sleek Enclosure

These deluxe displays are the ultimate solution for displaying your content in public spaces. As well as protecting the internal components, the robust aluminium surround and tempered edge-to-edge glass also deliver captivating tablet-like aesthetics for a truly high-end feel.

Tempered Glass

Toughened Safety Glass

Improves tactility for smoother touch gestures, especially useful when there is more than one user touching the screen. The anti-glare nano coating also diffuses external light so that images and videos are much clearer.

Android Player

Integrated Android Media Player

The built-in Android media player allows you to easily run and update on-screen content via a website, our free CMS software or any other compatible third-party software.
Free Wall Mount

Countertop Dedicated Mount

Screens are available in both portrait and landscape orientation and sit at a comfortable 70 degree angle, and can be rested on any flat surface or secured with discreet mounting options.

Integrated Speaker

HDMI Input

Should you need to use the screen as a monitor you can connect it to an external source, like a PC or media player, using the HDMI input.

OPT.: Digital Touch Screen Countertop Display

Touch Screen

OPT.: 10-Point PCAP Touch

Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out – much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
Touch Screen

Touchscreen Tabletop

Cloud based CMS

Cloud Based CMS Software
