DP/EP-K Series (43”-65”) Displays, 1920 x 1080 Resolution, 700 cd/m2 Brightness, 24/7
FHD & UHD Android Freestanding Digital Posters, Both FHD & 4K UHD Digital Signage Kiosk. Freestanding P-CAP Touch Screen Poster Optional
Vivisign DP/EP-K Series is perfect for brightly-lit retail environments.
Key Features
- Both Full HD & Utra HD LCD panel are available as requested
- Brightness(Typ.): 500 cd/m² for UHD LCD Panel, 700 cd/m² for FHD LCD Panel
- Full Viewing Angle (H:178/V:178)
- Built-in Android signage player | Built-in Windows OS PC Player Available
- Built-in Speakers
- Tempered glass for protection
- Optional Interactive Capacitive Touch Capabilities
EP-K Series | ULTRA HD 500Nits All-in-One Digital ePoster

EP43K | 43” All-in-one free-standing digital ePoster kiosk
- 43″ Display, UTRA HD 4K Resolution, 500 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 4GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

EP49K | 49” All-in-one free-standing digital ePoster kiosk
- 49″ Display, UTRA HD 4K Resolution, 500 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 4GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

EP55K | 55” All-in-one free-standing digital ePoster kiosk
- 55″ Display, UTRA HD 4K Resolution, 500 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 4GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

EP65K | 65” All-in-one free-standing digital ePoster kiosk
- 65″ Display, UTRA HD 4K Resolution, 500 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 4GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH
DP-K Series | Full HD 700Nits All-in-One Digital ePoster

DP43K | 43” All-in-one free-standing digital ePoster kiosk
- 43″ Display, FHD Resolution, 700 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 2GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

DP49K | 49” All-in-one free-standing digital ePoster kiosk
- 49″ Display, FHD Resolution, 700 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 2GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

DP55K | 55” All-in-one free-standing digital ePoster kiosk
- 55″ Display, FHD Resolution, 700 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 2GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH

DP65K | 65” All-in-one free-standing digital ePoster kiosk
- 65″ Display, FHD Resolution, 700 cd/m2 Brightness, 178°/178° wide-angle viewing, 1200:1 contrast ratio, and dual 5W stereo speakers, 24/7
- Comes with a tempered glass faceplate for added durability
- Embedded Quad-core media player with 4K video decoding capability, 2GB Memory and 32GB of internal storage, Android OS 11
- OPT.: PCAP TOUCH
At a Glance
ViviSign All-in-one free-standing digital signage displays are Full HD/4K Ultra HD all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the DP-K Series comes with a tempered glass faceplate for added durability. Featuring an ADS commercial-type panel, FHD/4K Ultra HD resolution, 178°/178° wide-angle viewing, 700-nit brightness, 1200:1 contrast ratio, and dual 5W stereo speakers, the DP-K Series delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 32GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door.
Optional: Vivisign Free CMS Software

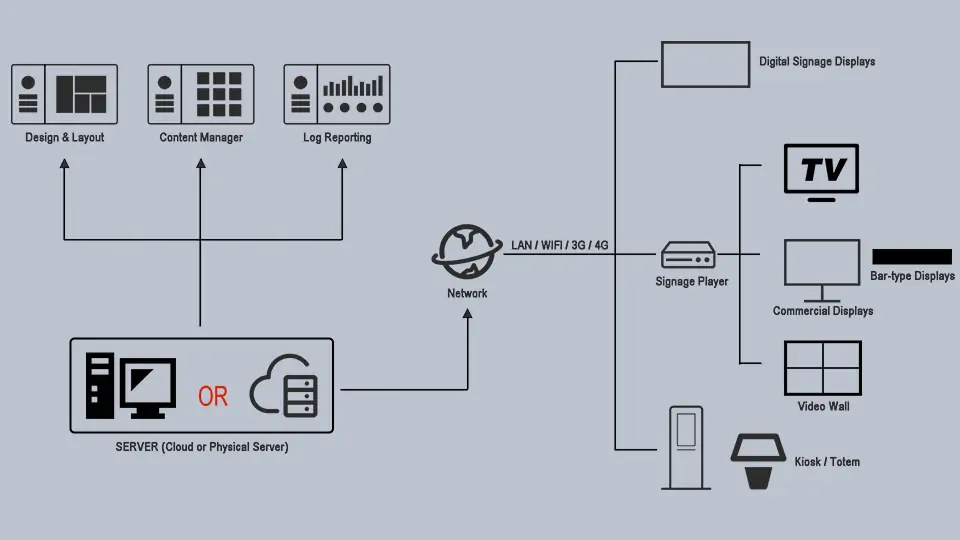

With embedded SoC smart signage platform, it comes with ready to use digital signage software, no need to install it again. Content Management Software (CMS) is a friendly and modern easy to use cloud based digital signage software for creating digital content and manage all digital signage screens.
Optional: P-CAP Touch Screen, 10 touch points
FREESTANDING PCAP TOUCH SCREEN POSTERS
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out – much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
Features

ULTRA HD RESOLUTION
With four-times the resolution of Full HD, this Ultra HD 3840×2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

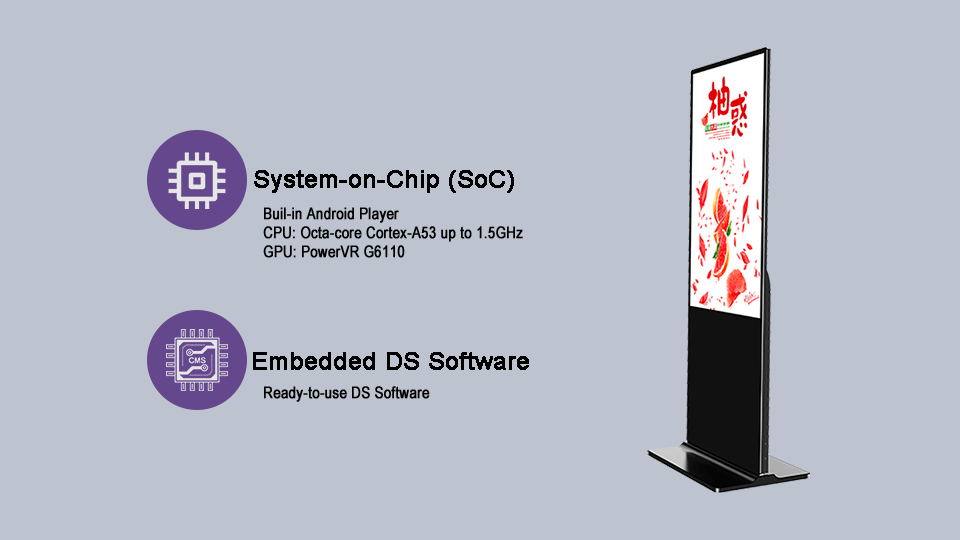

POWERFUL EMBEDDED SOC
ViviSign digital signage eposters are equipped with built-in Android higher performance signage player (ARM Cortex A55, 4GB Memory and 32GB Storage), so users don’t need external media player. This can save cost in terms of installation and the digital signage deployment and maintenance.

Free CMS Software
Standard digital displays are designed for different markets to meet different customer needs. With user-friendly smart signage platform to meet diverse commercial requirements. Our CMS software features:
- Supporting multimedia content type including image, video, text, webpage, weather, date/time and interactive content.
- Dividing screen into multiple regions or zones.
- Scheduling contents of the digital signage enables specific content to be displayed at a specific time of the dat or on different days.
- Publish contents to any players as required.
- Players management in groups, including player setting remotely, player upgrade remotely.
- Monitor: All players status and content playing can be monitored.
- Reporting players log and exported to Excel format for future data analysis.

FREE-STANDING DESIGN
This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.
OPT.: MULTI-TOUCH DIGITAL EPOSTER
This display delivers on-demand interactive messaging with 10-point multi-touch capability (Optional) and is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.
Reliable, Affordable Digital Signage Software
Our digital signage solution has a full library of content

Videos
Support 4K resolution and Full HD 1080P video decoding.

Images
Upload images and adjust their size on the canvas.

Audios
Support Auido/Music as backgroud audio for loop playing.

Scrolling Text
Create your own scrolling text available in multiple directions and speeds.

Webpage/HTML5
Display any webpage including HTML5 Webpage on screen.

Live Streaming
Support streaming video in RTSP and HTTP formats.

Weather
Display weather data in digital signage screen.

Zones
Playback multiple content types and multiple videos on a single screen using zones

Video Walls
Easily create standard video walls with frame-accurate synchronization to deliver dynamic and eye-catching results.

Synchronization
It supports all rich media content in synchronous playback over a multitude of commercial displays.
Specifications
43” All-in-one Free-standing Digital ePoster Kiosk |DP43K
DISPLAY SIZE (IN.)
43”
LCD Panel
Diaplay Size: 43” | Resolution: 1920 x 1080 | Brightness: 700 cd/m2 | Viewing Angle: 178/178 | Color: 16.7B, 72% NTSC | Aspect Ratio: 16:9 | LED light life time: 30K hours
[OPT.: 4K ULTRA HD LCD Panel]
Embedded Player
Android Player: Amlogic T960X, Quad-core Cortex-A55 up to 1.8GHz, 2GB RAM, 8GB ROM, Android OS 7.1 | Network: Ethernet + WiFi
PC Player: Intel i3/i5/i7, 4GB Memory, 128GB SSD, Windows OS 10 w/o license | Network: Ethernet + WiFi
Power
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz | Consuption: 90W
General
Audio: internal speakers (5W x2)
Net Dimensions: 1800 x 599 x 85mm
Working Temperature: 0 – 40º C |Humidity (Non-Condensing): 10-85%
Touch Available
IR Touch: Available
P-CAP Touch:Available
50” All-in-one Free-standing Digital ePoster Kiosk |DP50K
DISPLAY SIZE (IN.)
50”
LCD Panel
Diaplay Size: 50” | Resolution: 1920 x 1080 | Brightness: 700 cd/m2 | Viewing Angle: 178/178 | Color: 16.7B, 72% NTSC | Aspect Ratio: 16:9 | LED light life time: 30K hours
[OPT.: 4K ULTRA HD LCD Panel]
Embedded Player
Android Player: Amlogic T960X, Quad-core Cortex-A55 up to 1.8GHz, 2GB RAM, 8GB ROM, Android OS 7.1 | Network: Ethernet + WiFi
PC Player: Intel i3/i5/i7, 4GB Memory, 128GB SSD, Windows OS 10 w/o license | Network: Ethernet + WiFi
Power
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz | Consuption: 120W
General
Audio: internal speakers (5W x2)
Net Dimensions: 1806.29 x 730.81 x 45mm
Working Temperature: 0 – 40º C |Humidity (Non-Condensing): 10-85%
Touch Available
IR Touch: Available
P-CAP Touch:Available
55” All-in-one Free-standing Digital ePoster Kiosk |DP55K
DISPLAY SIZE (IN.)
55”
LCD Panel
Diaplay Size: 55” | Resolution: 1920 x 1080 | Brightness: 700 cd/m2 | Viewing Angle: 178/178 | Color: 16.7B, 72% NTSC | Aspect Ratio: 16:9 | LED light life time: 30K hours
[OPT.: 4K ULTRA HD LCD Panel]
Embedded Player
Android Player: Amlogic T960X, Quad-core Cortex-A55 up to 1.8GHz, 2GB RAM, 8GB ROM, Android OS 7.1 | Network: Ethernet + WiFi
PC Player: Intel i3/i5/i7, 4GB Memory, 128GB SSD, Windows OS 10 w/o license | Network: Ethernet + WiFi
Power
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz | Consuption: 150W
General
Audio: internal speakers (5W x2)
Net Dimensions: 1900 x 755.9 x 85mm
Working Temperature: 0 – 40º C |Humidity (Non-Condensing): 10-85%
Touch Available
IR Touch: Available
P-CAP Touch:Available
65” All-in-one Free-standing Digital ePoster Kiosk |DP65K
DISPLAY SIZE (IN.)
65”
LCD Panel
Diaplay Size: | Resolution: 1920 x 1080 | Brightness: 700 cd/m2 | Viewing Angle: 178/178 | Color: 16.7B, 72% NTSC | Aspect Ratio: 16:9 | LED light life time: 30K hours
[OPT.: 4K ULTRA HD LCD Panel]
Embedded Player
Android Player: Amlogic T960X, Quad-core Cortex-A55 up to 1.8GHz, 2GB RAM, 8GB ROM, Android OS 7.1 | Network: Ethernet + WiFi
PC Player: Intel i3/i5/i7, 4GB Memory, 128GB SSD, Windows OS 10 w/o license | Network: Ethernet + WiFi
Power
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz | Consuption: 200W
General
Audio: internal speakers (5W x2)
Net Dimensions: 2100 x 882.24 x 85mm
Working Temperature: 0 – 40º C |Humidity (Non-Condensing): 10-85%
Touch Available
IR Touch: Available
P-CAP Touch:Available
