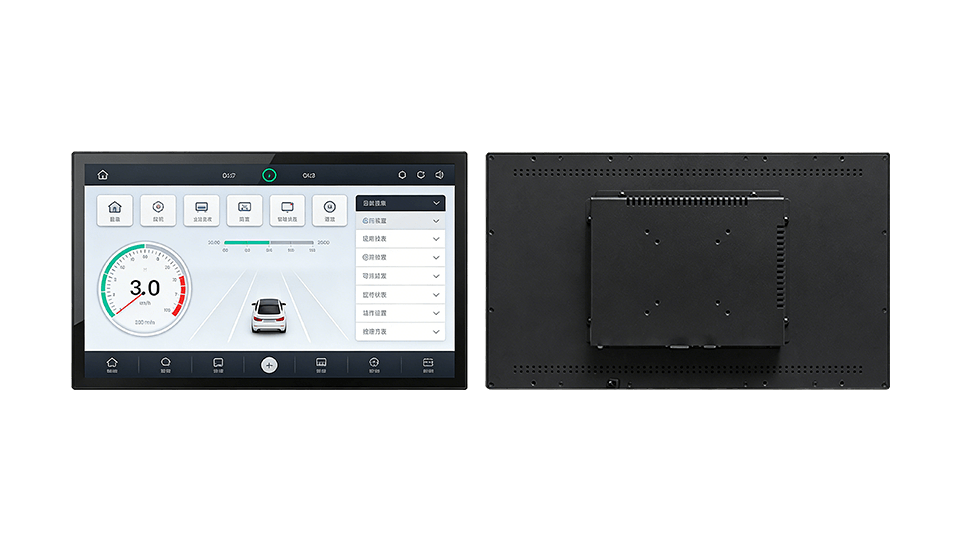

SE-G Series Industrial Touch Displays
Industrial PCAP Touch Monitors, Industrial Android PCAP Touch Screens
Vivisign Industrial Displays with PCAP Touch ensures better touch performance
Key Features:
- Incredible Multi-touch Experiences, supports 10 points multi-touch
- The Touch Monitor series can fexibly integrate with enclosures of diferent shapes and sizes while supporting landscape and portrait orientations. It is perfect for fitting into customized housings like self-service kiosks, interactive kiosks, and gaming machines.
- Built commercial-grade, the Touch Monitor series features a long service life and stable 24/7 operation, working around the clock without overheating or screen damage.
- The special anti-fngerprint coating resists and reduces the adhesion and appearance of fngerprints and smudges. In addition to keeping the screen clean, it also helps maintain clear visibility of the contents on display even after operating on hours on end.
- 9-36V Wide Voltage input (via both Phoenix connector and DC port) for flexible installation on different applications on site.
At a Glance
Vivisign TFT Displays with In-Cell Touch
For the new in-TOUCH TFT displays Vivisign has integrated a capacitive touch screen directly into the TFT cell. This technology offers customers several advantages compared to displays where the touch screen is applied externally: The compact design not only leads to a significantly slimmer and lighter design but also reduces internal reflections. The in-TOUCH displays therefore provide a sharp image that is perfectly readable even when viewed from the sides, thanks to IPS technology.
In-Cell Touch
The In-Cell touch technology provides advantages in writing performance, visibility, and design because the LCD panel and protective glass are directly bonded with no air gaps. The In-Cell touch signage delivers a high-quality user experience and boosts your efficiency with its slim design and outstanding writing performance.
In-Cell Touch Interactive Digital Displays Format
Vivisign provide several formats for In-cell touch displays to meet different customers’ requirements, including:
- LCD Monitor only with HDMI IN
- All-in-one Android OS Displays
- All-in-one Windows OS Displays
Industrial Android PCAP Touch Screens, Industrial PCAP Touch Screen Monitors
(13.3” – 32”) Reliable, Rugged and Durable
13.3” PCAP Touch Screen | SE133W
- 13.3” Full HD 1920 x 1080, 700nits, 170/170 Viewing Angle, 16.7M Color
- Outline Size (mm): 332.4 x 206.4 x 38
- Display Area (mm): 409.8×230.4
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
15.6” PCAP Touch Screen | SE156W
- 15.6” Full HD 1920 x 1080, 500nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 376.4 x 236.4 x 38.2
- Display Area (mm): 343.76 x 193.19
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
18.5” PCAP Touch Screen | SE19W
- 18.5” Full HD 1920 x 1080, 500nits, 170/170 Viewing Angle, 16.7M Color
- Outline Size (mm): 458.4×278.5×45.9
- Display Area (mm): 409.8×230.4
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
22” PCAP Touch Screen | SE22W
- 21.5” Full HD 1920 x 1080, 500nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 523.64×315.11×49.3
- Display Area (mm): 476.5×268
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
24” PCAP Touch Screen | SE24W
- 24” Full HD 1920 x 1080, 500nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 572.28×344.22×54.3
- Display Area (mm): 522×294
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
24” PCAP Touch Screen | SE24W
- 24” Full HD 1920 x 1080, 500nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 572.28×344.22×54.3
- Display Area (mm): 522×294
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
27” PCAP Touch Screen | SE27W
- 27” Full HD 1920 x 1080, 500nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 654.89 x 393.3 x 58.3
- Display Area (mm): 597.9 x 336.3
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
32” PCAP Touch Screen | SE32W
- 32” Full HD 1920 x 1080, 400nits, 178/178 Viewing Angle, 16.7M Color
- Outline Size (mm): 750 x 447.8 x 54.2
- Display Area (mm): 698 x 391.8
- Touch Panel: 10-point capacitive touch panel
- Enclosure: Metal casing with aluminum frame
- OPT.1: Built-in Android OS 11 or Others
- OPT.2: P-CAP Touch Screen Monitors
- OPT.3: Built-in Camera
