G-NT Series Indoor Industrial Panel Mount Monitor and Touch Screen
Indoor Industrial Grade Touchscreens for 24/7 Continuous Operation, Open Frame Touchscreen Displays for Any Industry
Key Features:
- Industrial grade touch screens with Wide Working Temperature from -10℃ to 60℃
- Reliable 24/7 Operation
- IP65 Rated Dustproof & Water-resistant for the front part of the display
- EETI Advanced Projective Capacitive (PCAP) Touch Technology, up to 10 simultaneous touch points
- Anti-fingerprint via Surface Plasma Treatment: A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures.
- Impact-Resistant: IK08-rated construction withstands impact and daily wear
- OPT.1: LCD Monitor with HDMI IN, DP IN, RS232
- OPT.2: Built-in ARM based Android OS or ARM Based Linux OS, LAN + WIFI
INDOOR Industrial Grade Touch Screens Available Sizes and Models
10.1” Industrial Grade Touch Screen | G10NT
- LCD Panel: BOE Model: GV101WXM-N80. 1280 x 800 Resolution, 500nits, 1300:1, 170/170 Viewing Angle, 16.7M, 45% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -10°C to 60°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
15.6” Industrial Grade Touch Screen | G156NT
- LCD Panel: AUO Model: G156HAN02.3. 1920 x 1080 Resolution, 500nits, 1300:1, 178/178 Viewing Angle, 16.7M, 71% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -10°C to 60°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
17” Industrial Grade Touch Screen | G17NT
- LCD Panel: BOE Model: DV170E0M-N30 . 1280 x 1024 Resolution, 500nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)

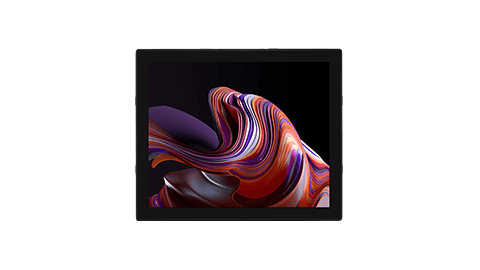

19” Industrial Grade Touch Screen | G19NT
- LCD Panel: BOE Model: ZV190E0M-N10. 1280 x 1024 Resolution, 450nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)

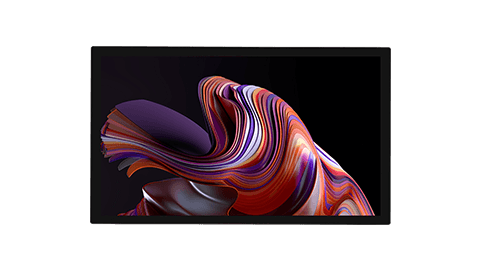

21.5” Industrial Grade Touch Screen | G22NT
- LCD Panel: BOE Model: GV215FHM-N10 . 1920 x 1080 Resolution, 450nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
23.8” Industrial Grade Touch Screen | G24NT
- LCD Panel: Vivisign Model. 1920 x 1080 Resolution, 500nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
27” Industrial Grade Touch Screen | G27NT
- LCD Panel: Vivisign Model. 1920 x 1080 Resolution, 500nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
32” Industrial Grade Touch Screen | G32NT
- LCD Panel: Vivisign Model. 1920 x 1080 Resolution, 500nits, 1000:1, 178/178 Viewing Angle, 16.7M, 72% NTSC, 60Hz
- Housing: Edge-to-edge glass face (IK08 rated), rounded corners, aluminium surround for Industrial Strength
- IP65 Compliant Front Panel
- EETI’s PCAP Touch Technology, touch 10 points
- Working Temperature: -20°C to 70°C
- OPT.1: LCD Monitor with HDMI IN, DP IN, VGA IN, RS232
- OPT.2: All-in-one Android Screen, (Linux OS available)
Overview
The ViviSign’s G-NT Series is the ideal solution for commercial and industrial spaces. Designed for heavy, continuous usage, the open frame series G-NT delivers a 24/7 long-life. Resistant to moisture and scratches, the 3mm thick glass screen features an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring SuperClear ADS & AMVA3 panel technology, the device delivers lifelike imagery, vivid color, and constant brightness of up to 500 nits. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities and an RS232 allows you to control the device remotely. Equipped with VESA mounting design for any surface and screen orientation, the touch screen is the perfect display for various environments.
